CONTRACTOR-GRADE RESINOUS SYSTEMS — DIRECT OEM CHEMICAL FORMULATIONS
MILITARY-PRECISION COATING ARCHITECTURE

HEAVY-DUTY CONCRETE COATINGS.
ZERO FILLER. MAXIMUM ADHESION.

Formulated specifically for professional floor contractors, commercial applicators, and high-throughput coating crews. Direct-from-manufacturer 100% Solids cycloaliphatic resin, ASTM-verified physical properties, and high-coverage systems shipped direct.

EPOXY 49EP-49-CLRPRIMER 49PR-49-CLRMVB 49MVB-49-FASTPOLYASPARTIC 49PA-49-FAST
Apply for Contractor Pricing→Download Technical Data Sheets
FORMULATION100% SOLIDS
COMPRESSIVE11,500+ PSI
HARDNESSSHORE D 82–86
COMPLIANCE50-STATE LOW VOC

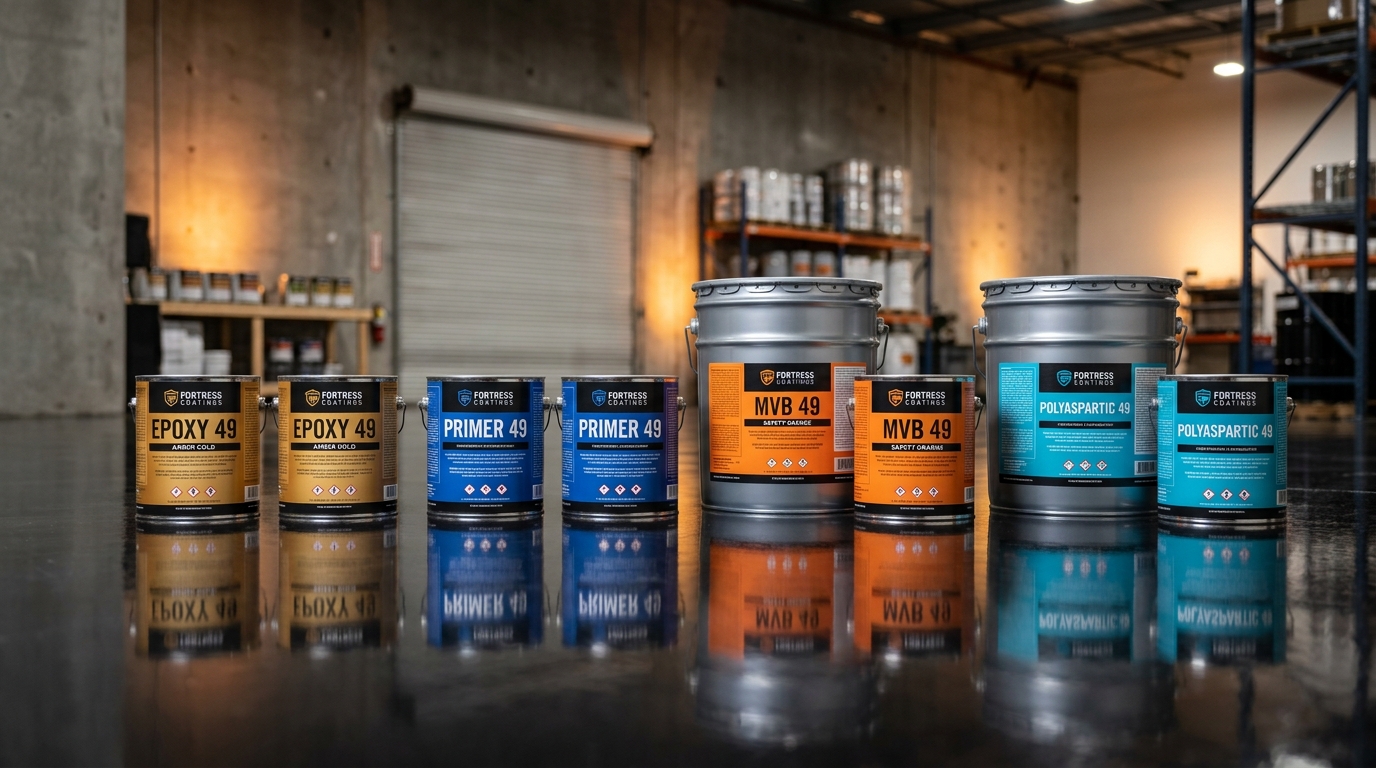

COMMERCIAL COATING SUITE

THE 4 OFFICIAL COMMERCIAL FORMULATIONS

Exact formulations derived from manufacturer technical data sheets. Color-coded container headers eliminate mixing errors on the jobsite.

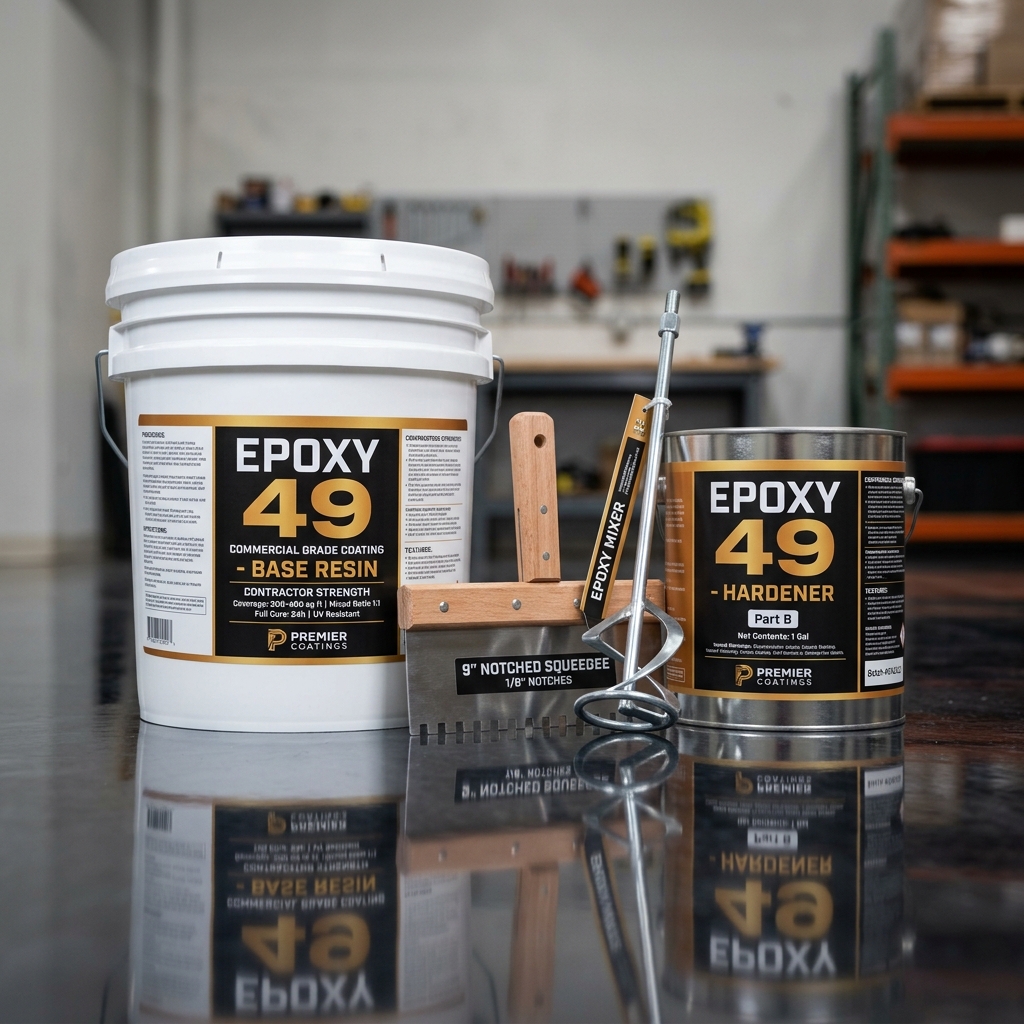

EPOXY 49 Logo
EPOXY 49|100% SOLIDS HIGH-BUILD CLEAR EPOXY / METALLIC BASE COAT|MIX: 2:1 BY VOLUME (2 PARTS A : 1 PART B)
⚠ATTENTION: POUR MIXED MATERIAL IMMEDIATELY ONTO FLOOR IN RIBBONS — DO NOT LEAVE IN BUCKET
INITIAL CURE:4–6 HOURS
FINAL CURE:48–72 HOURS
HARDNESS:SHORE D 82–85
COVERAGE:125–150 SQ FT / 3-GAL KIT

PHYSICAL PROPERTIES (ASTM)

Solids Content100% (ASTM D2697)
Mix Ratio (A:B)2:1 by Volume
Mixed Viscosity700 – 900 cps
Shore D Hardness82 – 85 D (D2240)
Tensile Strength7,800 psi (D638)
Compressive Strength11,500 psi (D695)
Flexural Strength9,800 psi (D790)
Concrete Adhesion>400 psi (Slab Fail)
Water Absorption<0.10% (D570)
VOC Content<10 g/L (EPA 24)
Pot Life (72°F Mass)20 – 30 Minutes
Working Time on Slab30 – 45 Minutes
Light Foot Traffic24 Hours @ 72°F
Full Vehicle / Tire72 Hours @ 72°F

EXACT MIXING & APPLICATION INSTRUCTIONS

  1. Mechanical Prep: Grind concrete to ICRI CSP 2-3 profile. Vacuum slab dust-free.
  2. Moisture Check: Slab must test <3 lbs MVER or <75% RH. If higher, apply MVB 49.
  3. Pigment Incorporation: Pre-mix 1 jar (150g) Epoxy49 Metallic Pigment per gal Part A.
  4. Mix Ratio: Accurately combine 2 Parts A to 1 Part B by volume in clean mixing pail.
  5. Mechanical Mix: Blend 3 minutes with spiral paddle at 350 RPM. Scrape bucket sides.
  6. Immediate Placement: Empty contents immediately onto floor in continuous ribbons.
  7. Spread & Back-Roll: Spread with 18" Magic Trowel or notched squeegee; back-roll with 3/8" nap.
  8. Coverage Yield: Metallic flow: 125–150 sq. ft. per 3-gal kit (32–40 wet mils). Neat: 300–450 sq. ft.
  9. Artistic Movement: Mist 91% Isopropyl alcohol within 20 min to create custom marbling effects.
  10. Recoat Window: 8 to 24 hours. If >24 hrs, mechanically abrade with 80-grit screen.

OSHA GHS HAZARD CLASSIFICATION

SIGNAL WORD:DANGER

H314: Causes severe skin burns and serious eye damage.

H317: May cause an allergic skin reaction.

H335: May cause respiratory tract irritation.

H411: Toxic to aquatic life with long lasting effects.

FIRST AID PROTOCOLS:

EYES: Flush with clean water for 15 min. Seek physician.

SKIN: Wash immediately with soap & water. Remove soiled clothing.

INGESTION: Do NOT induce vomiting. Call Poison Control immediately.

STORAGE & PPE REQUIREMENTS

  • Store indoors dry at 60°F–80°F (15°C–27°C).
  • Protect from moisture, direct sunlight, and freezing.
  • Keep containers tightly sealed in original packaging.
MANDATORY APPLICATOR PPE:
Nitrile GlovesSplash GogglesOrganic Vapor Mask
24-HR CHEMICAL EMERGENCY HOTLINE
CHEMTREC: 1-800-424-9300
Download Print Master PDFDownload TDS Spec Sheet
OFFICIAL CANON PRODUCTION LABELHigh-density print master layout · Batch verification enabled

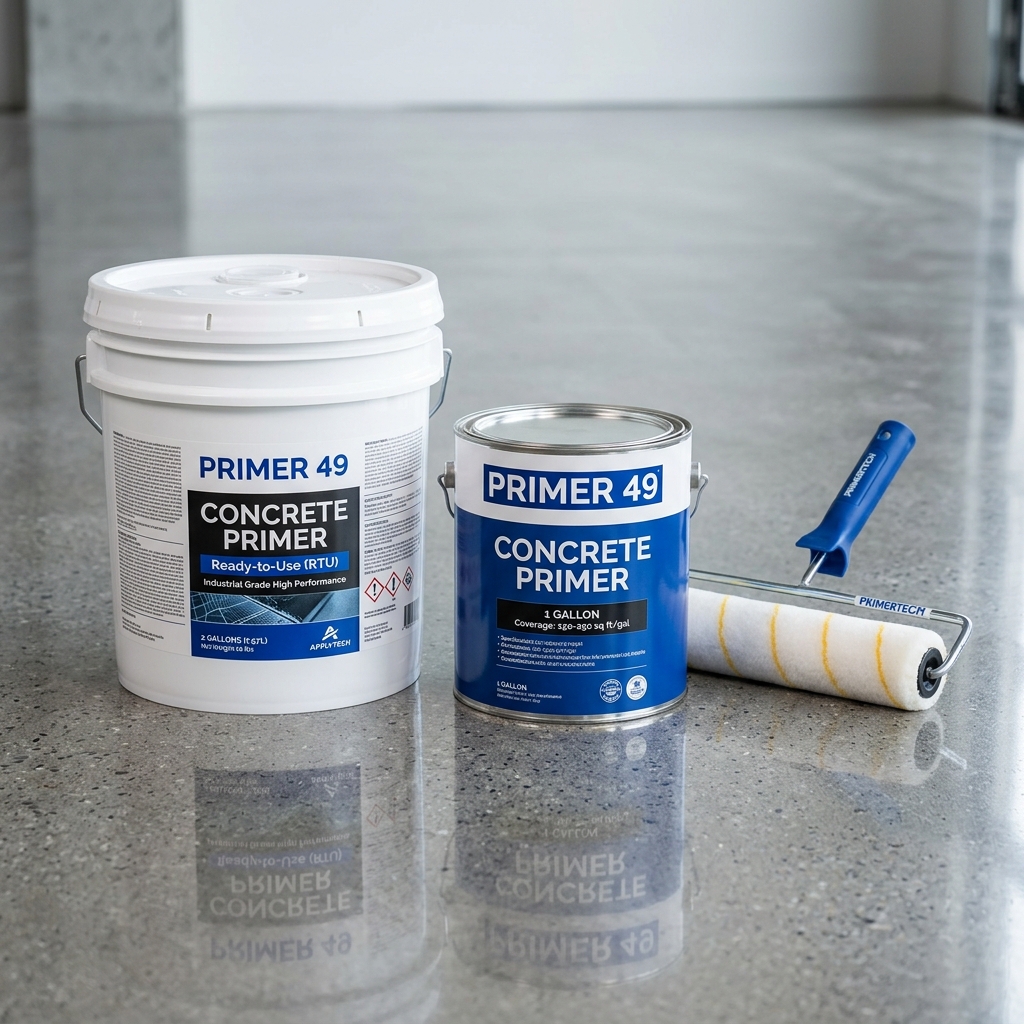

PRIMER 49 Logo
PRIMER 49|DEEP-PENETRATING ADHESION PRIMER | 100% SOLIDS|MIX: 2:1 BY VOLUME (2 PARTS A : 1 PART B)
⚠APPLICATION ALERT: 100% SOLIDS DEEP PENETRATION — LOW MOISTURE SLABS (<3 LBS MVER)
INITIAL TACK-FREE:4–6 HOURS
RECOAT WINDOW:6–24 HOURS
VISCOSITY:400 CPS (DEEP PEN)
COVERAGE:200–250 SQ FT / GAL

PHYSICAL PROPERTIES (ASTM)

Solids Content100% (ASTM D2697)
Mix Ratio (A:B)2:1 by Volume
Mixed Viscosity350 – 450 cps
Shore D Hardness80 – 82 D (D2240)
Tensile Strength7,200 psi (D638)
Compressive Strength10,800 psi (D695)
Concrete Adhesion>450 psi (Slab Fail)
Tack-Free Time4 – 6 Hours @ 72°F
Recoat Window6 – 24 Hours @ 72°F
VOC Content<10 g/L (EPA 24)
Pot Life (72°F Mass)25 – 35 Minutes
Max Moisture Limit<3 lbs MVER / <75% RH
Light Foot Traffic12 – 16 Hours @ 72°F
Coverage Yield200 – 250 sq ft / Gallon

EXACT MIXING & APPLICATION INSTRUCTIONS

  1. Mechanical Prep: Diamond grind slab to CSP 2-3 profile. Vacuum concrete dust thoroughly.
  2. Moisture Check: Slab must test <3 lbs MVER. Does NOT block hydrostatic vapor pressure.
  3. Mix Ratio: Accurately combine 2 Parts A with 1 Part B by volume into clean mixing pail.
  4. Mechanical Mix: Blend 3 minutes with low-speed drill (350 RPM) and spiral blade.
  5. Immediate Pour: Pour ribbon onto concrete slab. Do not allow to stand in container.
  6. Spread Technique: Spread with flat squeegee to force primer into concrete micro-pores.
  7. Back-Rolling: Immediately back-roll with 3/8" lint-free roller to create uniform wet film.
  8. Coverage: 200-250 sq. ft./gal (600-750 sq. ft. per 3-gal kit) applied at 6-8 wet mils.
  9. Base Coat Recoat: Apply base coat once primer is tack-free (typically 6-8 hours).
  10. Abrasion Window: If recoat window exceeds 24 hours, abrade with 80-grit sanding screen.

OSHA GHS HAZARD CLASSIFICATION

SIGNAL WORD:DANGER

H314: Causes severe skin burns and serious eye damage.

H317: May cause an allergic skin reaction.

H335: May cause respiratory tract irritation.

H411: Toxic to aquatic life with long lasting effects.

FIRST AID PROTOCOLS:

EYES: Flush with clean water for 15 min. Seek physician.

SKIN: Wash immediately with soap & water. Remove soiled clothing.

INGESTION: Do NOT induce vomiting. Call Poison Control immediately.

STORAGE & PPE REQUIREMENTS

  • Store indoors dry at 60°F–80°F (15°C–27°C).
  • Protect from moisture, direct sunlight, and freezing.
  • Keep containers tightly sealed in original packaging.
MANDATORY APPLICATOR PPE:
Nitrile GlovesSplash GogglesOrganic Vapor Mask
24-HR CHEMICAL EMERGENCY HOTLINE
CHEMTREC: 1-800-424-9300
Download Print Master PDFDownload TDS Spec Sheet
OFFICIAL CANON PRODUCTION LABELHigh-density print master layout · Batch verification enabled

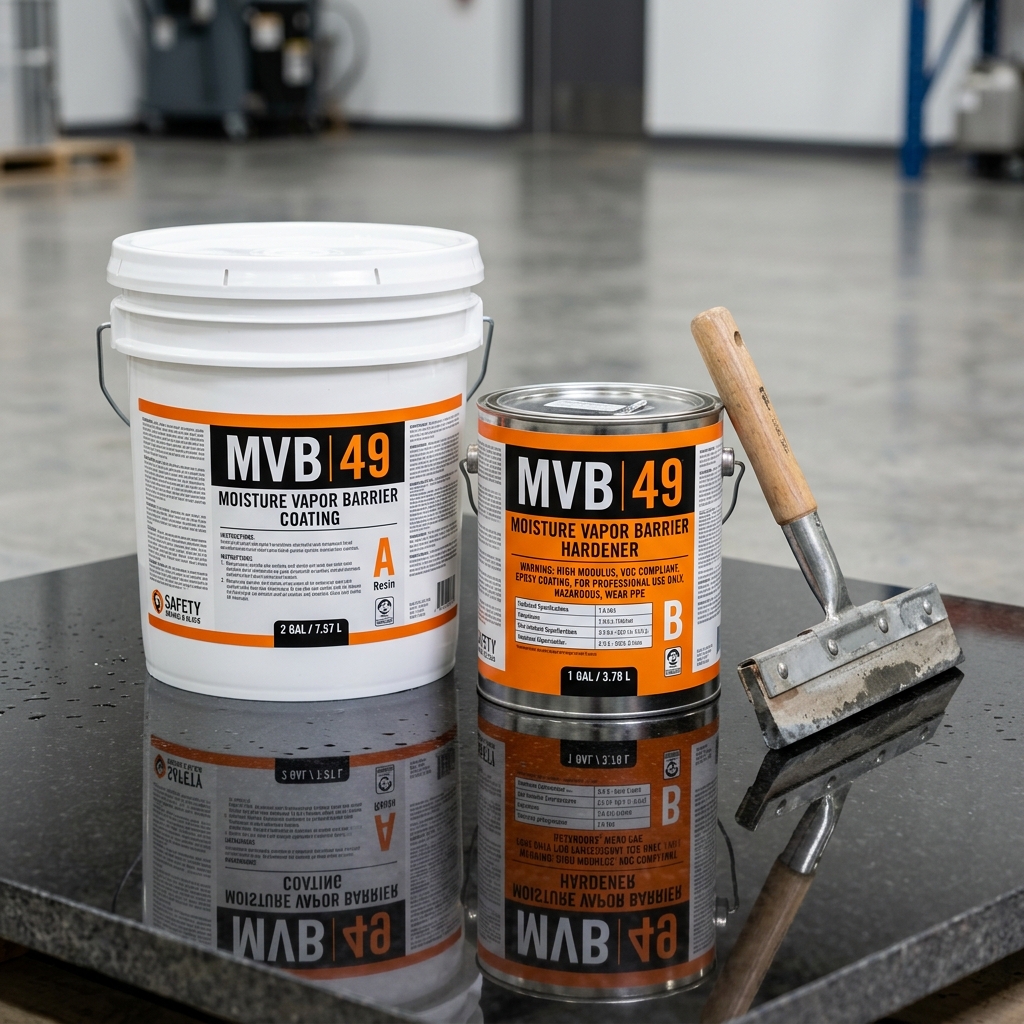

MVB 49 Logo
MVB 49|MOISTURE VAPOR BARRIER EPOXY | SUPPRESSES UP TO 25 LBS MVER|MIX: 2:1 BY VOLUME (2 PARTS A : 1 PART B)
⚠CRITICAL ALERT: POT LIFE 20–30 MINUTES | SUPPRESSES UP TO 25 LBS MVER / 99% RH
MVER LIMIT:UP TO 25 LBS MVER
RH TOLERANCE:99% IN-SITU RH
PERMEANCE:<0.10 PERMS (CLASS I)
ALKALINITY:RESISTANT TO PH 14

PHYSICAL PROPERTIES (ASTM)

Solids Content100% (ASTM D2697)
Mix Ratio (A:B)2:1 by Volume
MVER Limit25 lbs / 1,000 sq ft
Internal HumidityUp to 99% RH (F2170)
Permeance Rating<0.10 Perms (E96)
pH ResistanceResists pH 14 Slabs
Shore D Hardness84 – 86 D (D2240)
Tensile Strength8,200 psi (D638)
Compressive Strength12,000 psi (D695)
Tensile Adhesion>450 psi (Slab Fail)
Mixed Viscosity1,200 – 1,500 cps
VOC Content<10 g/L (EPA 24)
Pot Life (72°F Mass)20 – 30 Minutes
Recoat Window8 – 16 Hours @ 72°F

EXACT MIXING & APPLICATION INSTRUCTIONS

  1. Mechanical Prep: Shot blast or diamond grind concrete to ICRI CSP 3. Vacuum dust completely.
  2. Pre-Mix: Separately stir Part A for 1 minute. Accurately measure 2 Parts A to 1 Part B by volume.
  3. Mechanical Mix: Blend 3 minutes with low-speed drill (350 RPM). Scrape bucket walls and bottom.
  4. Immediate Placement: Empty contents immediately onto slab in ribbons (exotherm risk in bucket).
  5. High Moisture App: Spread with 3/16" or 1/4" V-notched squeegee at 100-120 sq ft/gal (14–16 wet mils).
  6. Moderate Moisture App: Spread at 130-150 sq ft/gal (11–12 wet mils) for slabs up to 15 lbs MVER.
  7. Back-Rolling: Immediately cross-roll with 3/8" nap lint-free roller perpendicular to squeegee pulls.
  8. Pinhole Inspection: Inspect cured film for outgassing pinholes. A continuous monolithic film is mandatory.
  9. Recoat Window: 8 to 16 hours. Apply base coat within this window without mechanical abrading.
  10. Abrasion Window: If recoat window exceeds 24 hours, abrade with 60-80 grit sanding screen.

OSHA GHS HAZARD CLASSIFICATION

SIGNAL WORD:DANGER

H314: Causes severe skin burns and serious eye damage.

H317: May cause an allergic skin reaction.

H373: May cause organ damage through prolonged exposure.

H411: Toxic to aquatic life with long lasting effects.

FIRST AID PROTOCOLS:

EYES: Flush with clean water for 15 min. Seek physician.

SKIN: Wash immediately with soap & water. Remove soiled clothing.

INGESTION: Do NOT induce vomiting. Call Poison Control immediately.

STORAGE & PPE REQUIREMENTS

  • Store indoors dry at 60°F–80°F (15°C–27°C).
  • Protect from moisture, direct sunlight, and freezing.
  • Keep containers tightly sealed in original packaging.
MANDATORY APPLICATOR PPE:
Nitrile GlovesSplash GogglesOrganic Vapor Mask
24-HR CHEMICAL EMERGENCY HOTLINE
CHEMTREC: 1-800-424-9300
Download Print Master PDFDownload TDS Spec Sheet
OFFICIAL CANON PRODUCTION LABELHigh-density print master layout · Batch verification enabled

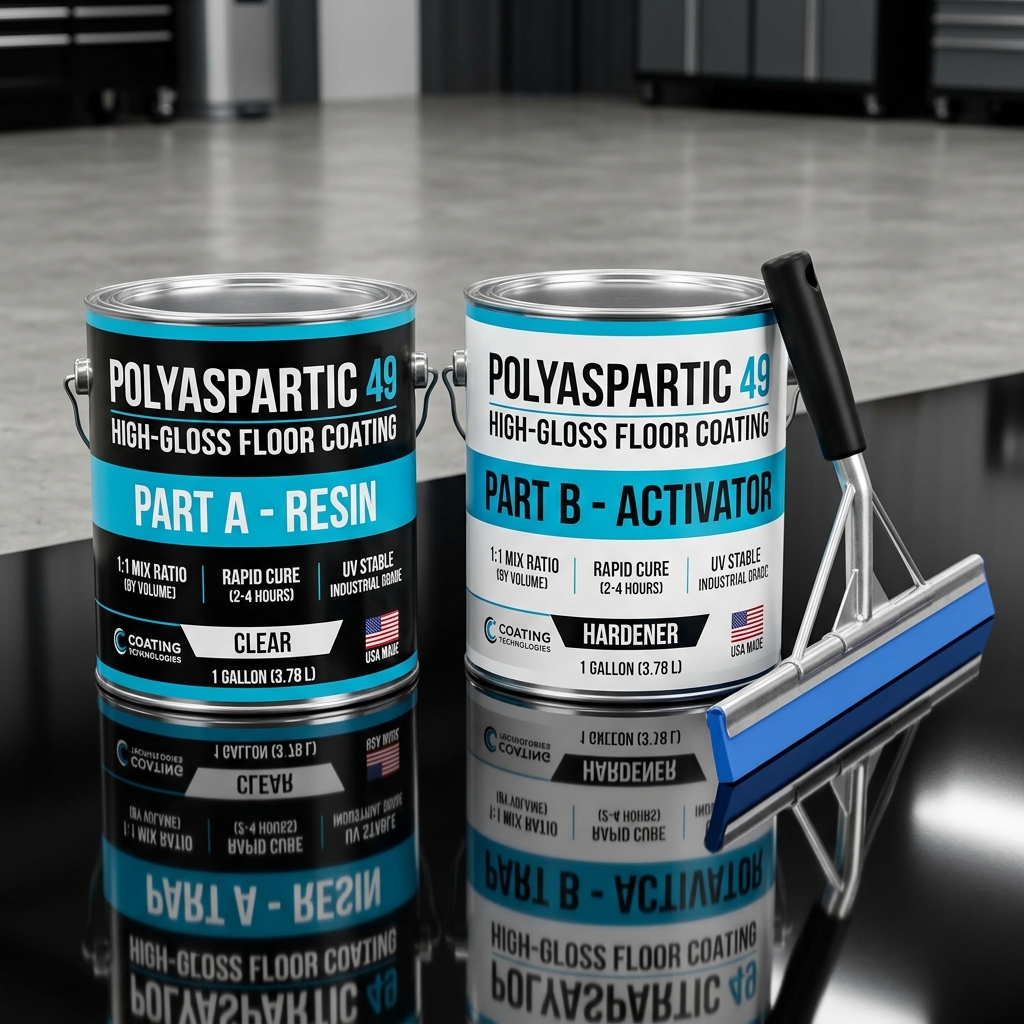

POLYASPARTIC 49 Logo
POLYASPARTIC 49|CLEAR TOPCOAT (99% SOLIDS) | RAPID RETURN TO SERVICE|MIX: 1:1 BY VOL / WEIGHT (1 PART A : 1 PART B)
⚠TECHNICAL ALERT: RAPID CURE | WORKING TIME 15–20 MIN | SUBSTRATE >5°F ABOVE DEW POINT
SOLIDS:98–99% HIGH SOLIDS
DRY TO TOUCH:2 HOURS @ 72°F
LIGHT FOOT:4–6 HOURS
FULL VEHICLE:24–48 HOURS

PHYSICAL PROPERTIES (ASTM)

Solids Content98% – 99% (D2697)
Mix Ratio (A:B)1:1 by Vol or Weight
Mixed Viscosity400 – 600 cps
Pot Life (72°F, 50% RH)15 – 20 Minutes
Shore D Hardness80 – 82 D (D2240)
Taber Abrasion<25 mg (CS-17, 1k cyc)
UV Stability (QUV)2,000+ Hrs (No Yellow)
Hot-Tire DefenseUnaffected @ 140°F
Tensile Strength6,500 psi (D638)
VOC Content<50 g/L (SCAQMD 1113)
Specific GravityA: 1.07 | B: 1.07
Dry to Touch Time2 Hours @ 72°F
Light Foot Traffic4 – 6 Hours @ 72°F
Full Return to Service24 – 48 Hours @ 72°F

EXACT MIXING & APPLICATION INSTRUCTIONS

  1. Substrate Readiness: Base coat must be tack-free. If epoxy cured >24 hrs, abrade with 120-grit screen.
  2. Dew Point Check: Substrate temperature must be at least 5°F (3°C) above the calculated dew point.
  3. Mix Ratio: Accurately combine 1 Part A to 1 Part B by volume or weight in a clean container.
  4. Mechanical Mix: Blend 2 minutes with spiral paddle at 350 RPM. Do NOT aerate or whip micro-bubbles.
  5. Rapid Working Time: Working time is 15-20 min. Higher humidity significantly accelerates curing speed!
  6. Immediate Placement: Pour ribbon immediately onto floor. Pull with flat squeegee or magic trowel.
  7. Cross-Rolling: Immediately back-roll in both directions with 18" 3/8" nap lint-free roller.
  8. Smooth Topcoat: 200–250 sq. ft./gal (400–500 sq. ft. per 2-gal kit) applied at 6-8 wet mils.
  9. Flake Grout Coat: 125-160 sq. ft./gal (250–320 sq. ft. per 2-gal kit) applied at 10-12 wet mils.
  10. Thickness Limit: Never apply >12 wet mils per coat. Over-application causes solvent/moisture haze.

OSHA GHS HAZARD CLASSIFICATION

SIGNAL WORD:DANGER

H317: May cause an allergic skin reaction.

H319: Causes serious eye irritation.

H332: Harmful if inhaled (Aliphatic Polyisocyanate Prepolymer).

H334: May cause allergy or asthma symptoms if inhaled.

H335: May cause respiratory irritation.

FIRST AID PROTOCOLS:

EYES: Flush with clean water for 15 min. Seek physician.

SKIN: Wash immediately with soap & water. Remove soiled clothing.

INGESTION: Do NOT induce vomiting. Call Poison Control immediately.

STORAGE & PPE REQUIREMENTS

  • Store indoors dry at 60°F–80°F (15°C–27°C).
  • Protect from moisture, direct sunlight, and freezing.
  • Keep containers tightly sealed in original packaging.
MANDATORY APPLICATOR PPE:
Nitrile GlovesSplash GogglesOrganic Vapor Mask
24-HR CHEMICAL EMERGENCY HOTLINE
CHEMTREC: 1-800-424-9300
Download Print Master PDFDownload TDS Spec Sheet
OFFICIAL CANON PRODUCTION LABELHigh-density print master layout · Batch verification enabled
APPLICATION PROTOCOL

THE 5-STAGE COMMERCIAL RESINOUS SYSTEM

Engineered to build a monolithic mechanical bond from deep within concrete pores up to a crystal-clear aliphatic shield.

01

Mechanical Slab Profiling

Diamond grind or shot-blast concrete substrate to ICRI CSP 2 to 3. Slab must be structurally sound, dry, and dust-free.

CSP 2–3 PREP
02

PRIMER 49 Penetrating Seal

2:1 mix by volume. Ultra-low 400 cps viscosity anchors deep into micro-capillaries to eliminate outgassing bubbles.

DEEP CAPILLARY ANCHOR
03

MVB 49 Moisture Vapor Barrier (High-RH Slabs)

2:1 mix by volume. Suppresses severe hydrostatic moisture emissions up to 25 lbs MVER and resists up to pH 14 alkalinity.

25 LBS MVER DEFENSE
04

EPOXY 49 High-Build Bodycoat

100% Solids cycloaliphatic resin. Apply at 32–40 wet mils for custom metallic flow or broadcast color flakes to refusal.

100% SOLIDS BUILD
05

POLYASPARTIC 49 Aliphatic Shield

1:1 rapid cure. 100% UV-stable crystal-clear armor. 2-hour dry to touch, foot traffic in 4–6 hours, full return in 24–48 hours.

100% UV STABLE ARMOR
TECHNICAL REPOSITORY

SPECIFICATION SHEETS & PRINT MASTERS

Download production print vector masters and ASTM laboratory technical data sheets.

EPOXY 49 LogoEP-49-CLR

EPOXY 49

100% SOLIDS HIGH-BUILD CLEAR EPOXY / METALLIC BASE COAT

Vector Print MasterTechnical Data Sheet
PRIMER 49 LogoPR-49-CLR

PRIMER 49

DEEP-PENETRATING ADHESION PRIMER | 100% SOLIDS

Vector Print MasterTechnical Data Sheet
MVB 49 LogoMVB-49-FAST

MVB 49

MOISTURE VAPOR BARRIER EPOXY | SUPPRESSES UP TO 25 LBS MVER

Vector Print MasterTechnical Data Sheet
POLYASPARTIC 49 LogoPA-49-FAST

POLYASPARTIC 49

CLEAR TOPCOAT (99% SOLIDS) | RAPID RETURN TO SERVICE

Vector Print MasterTechnical Data Sheet
FIELD-PROVEN FINISHES

ONE SYSTEM. EVERY SURFACE THAT TAKES ABUSE.

From residential garages to aircraft hangars — Epoxy49 floors installed by contractor crews.

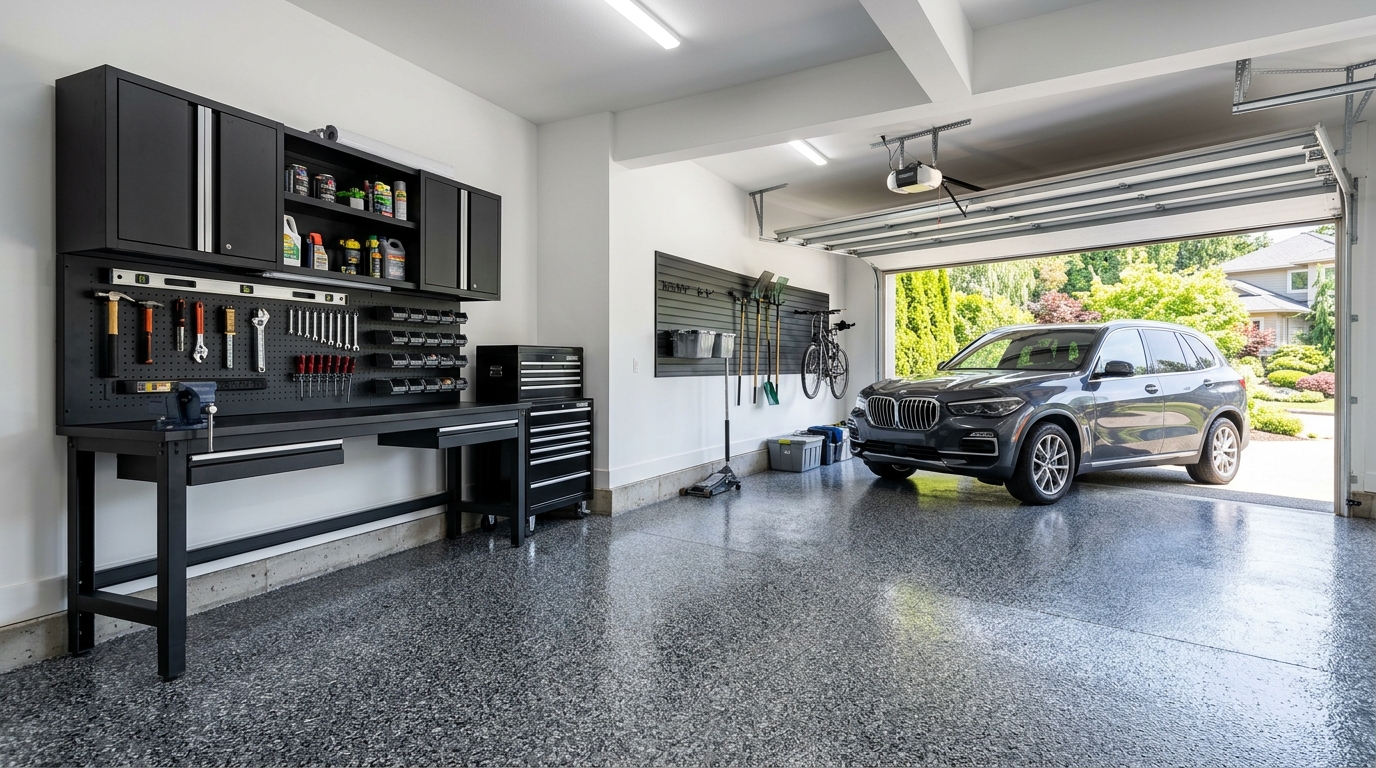

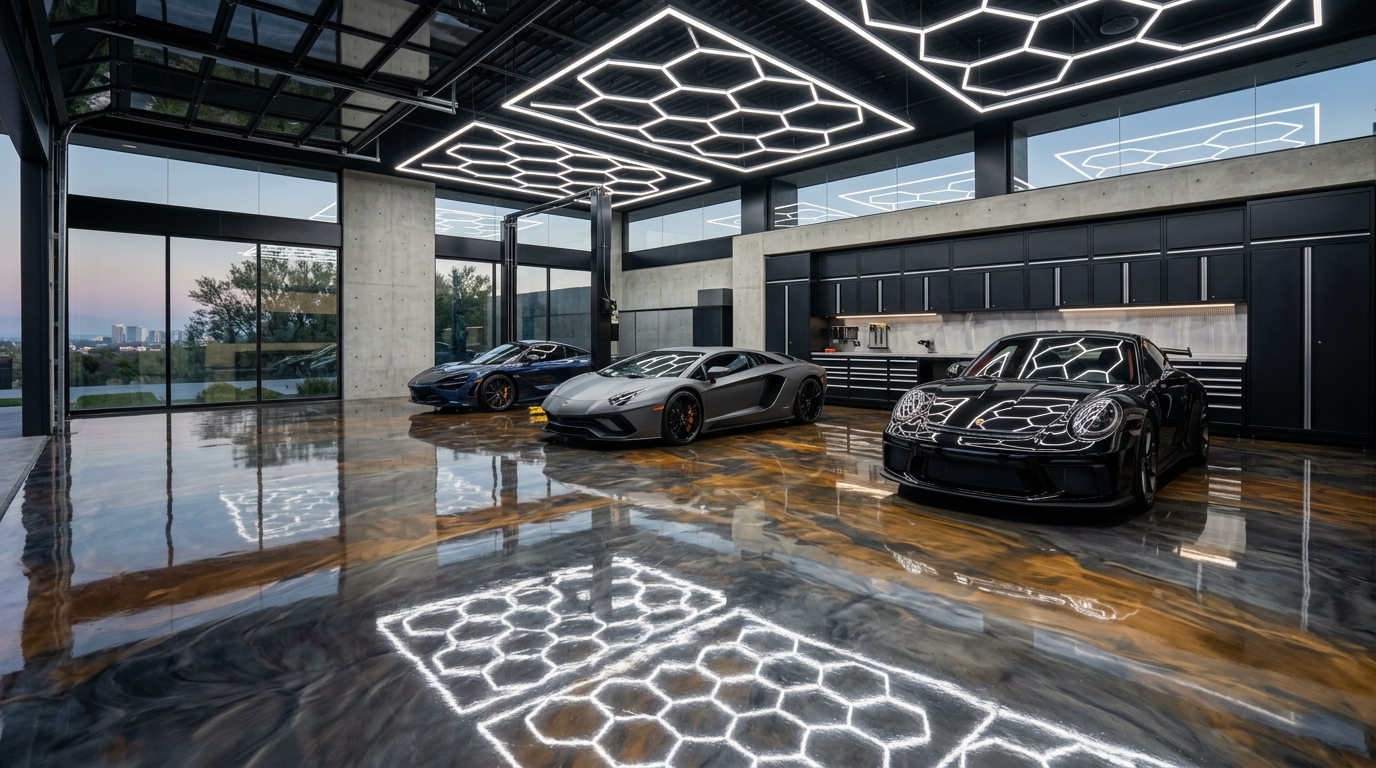

Residential Garages — epoxy floor

Residential Garages

Metallic & flake systems with hot-tire defense.

Dealership Showrooms — epoxy floor

Dealership Showrooms

Mirror-gloss floors that sell cars.

Warehouses & Logistics — epoxy floor

Warehouses & Logistics

High-build systems for forklift traffic.

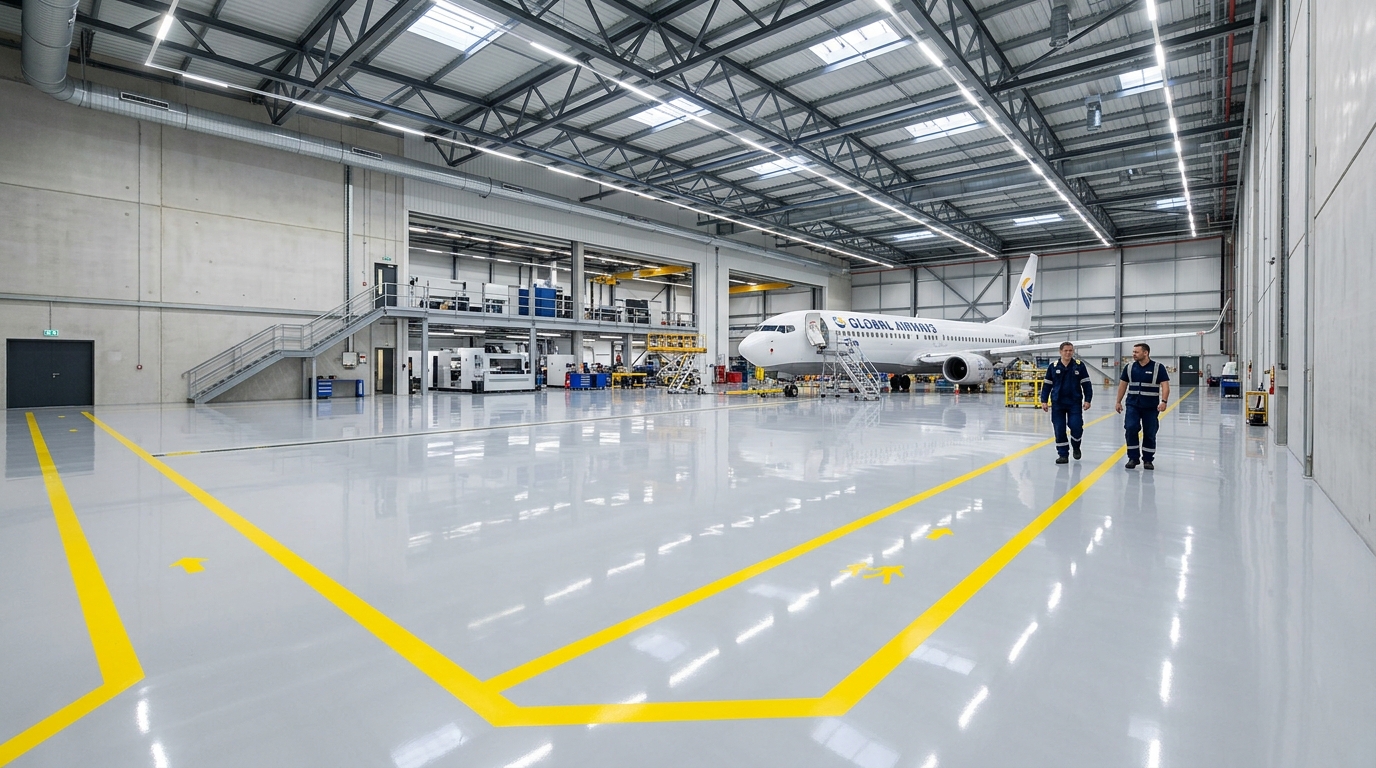

Hangars & Aviation — epoxy floor

Hangars & Aviation

Chemical-resistant, easy-clean bays.

Restaurants & Hospitality — epoxy floor

Restaurants & Hospitality

Seamless, sanitary, scuff-proof dining floors.

Auto Shops & Detailing — epoxy floor

Auto Shops & Detailing

Oil-proof gloss that takes daily abuse.

Contractor Application — epoxy floor

Contractor Application

Fast working times for high-throughput crews.

DIRECT OEM DISTRIBUTION

CONTRACTOR WHOLESALE ACCOUNTS & EVALUATION KITS

Approved flooring applicators, commercial paint crews, and general contractors receive direct tier pricing, priority pallet dispatch, and evaluation sample kits.
